Airflow
Measurement

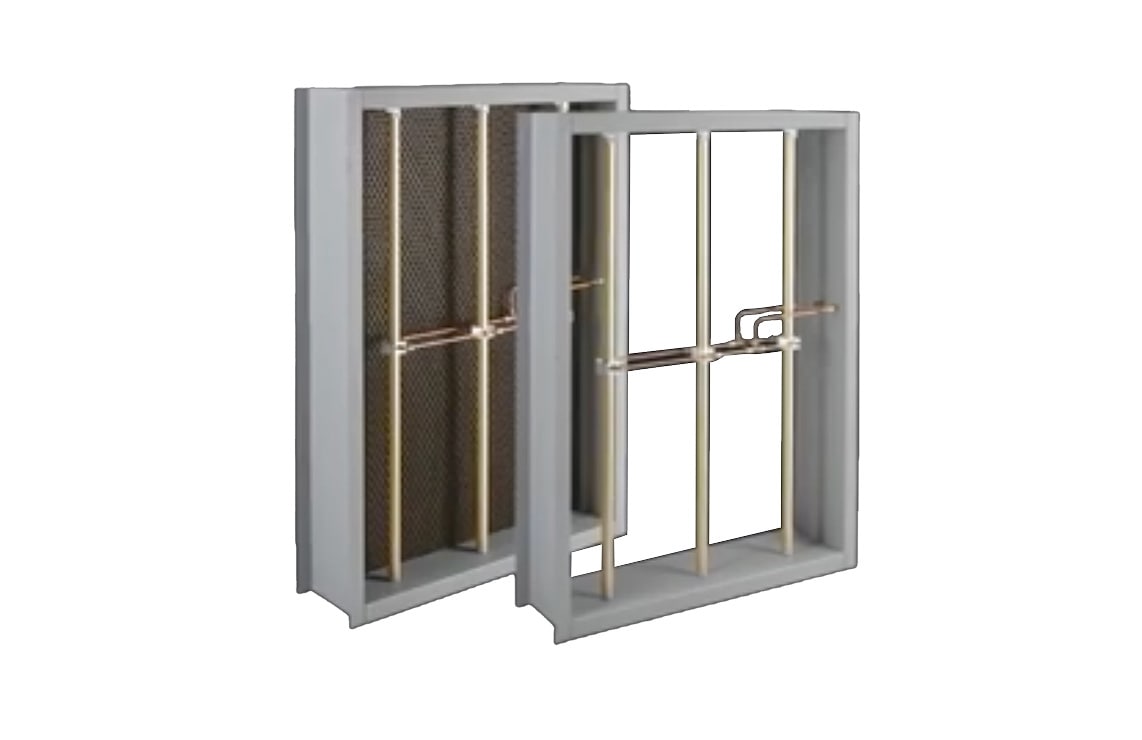

PCI Duct Measurement
FE-1000
The FE-1000 airflow sensing element is a head type device, which generates a differential (velocity) pressure signal similar to the orifice, venturi, and other head producing primary elements. The FE-1000 is constructed so that strategically located sensing ports (based on duct size) continually sample the total and static pressures, when inserted normal to flow.
PCI Airflow Measurement

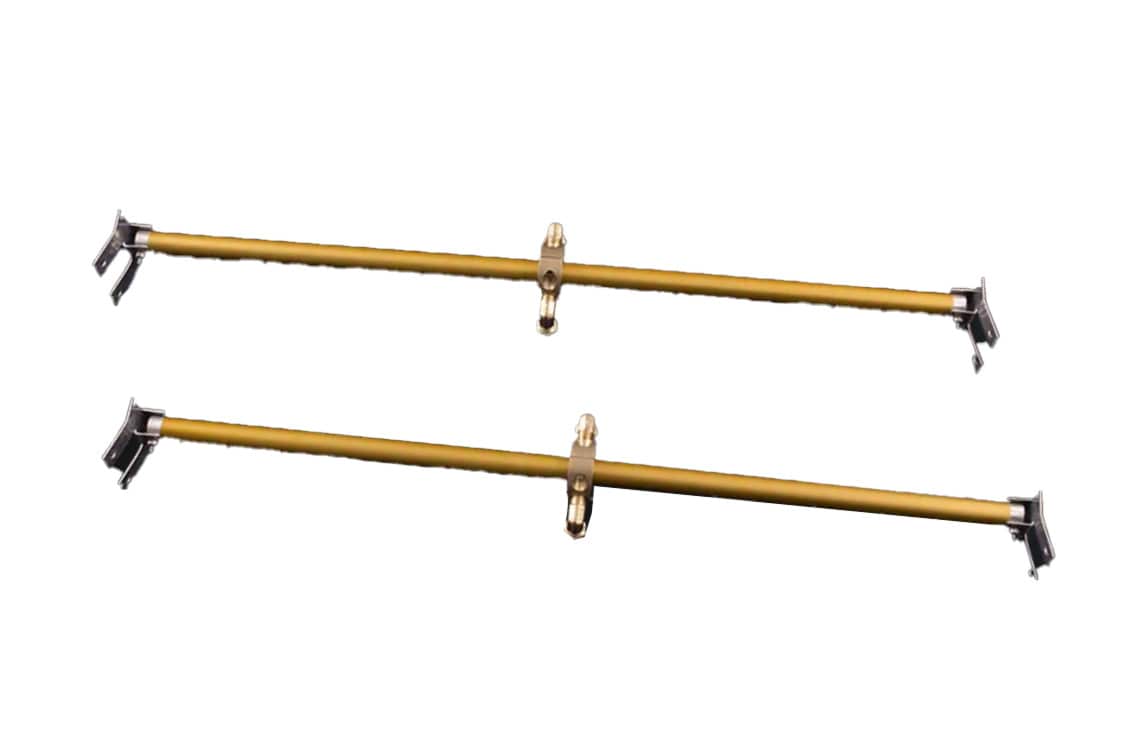

FE-1050
The FE-1050 is an airflow measuring element assembly specifically designed for installation in the inlet cone of centrifugal fans or inlet bell of vane-axial fans. The design of these primary elements provides a means of accurate measurement of fan capacity along with ease of installation.
PCI Airflow Measurement

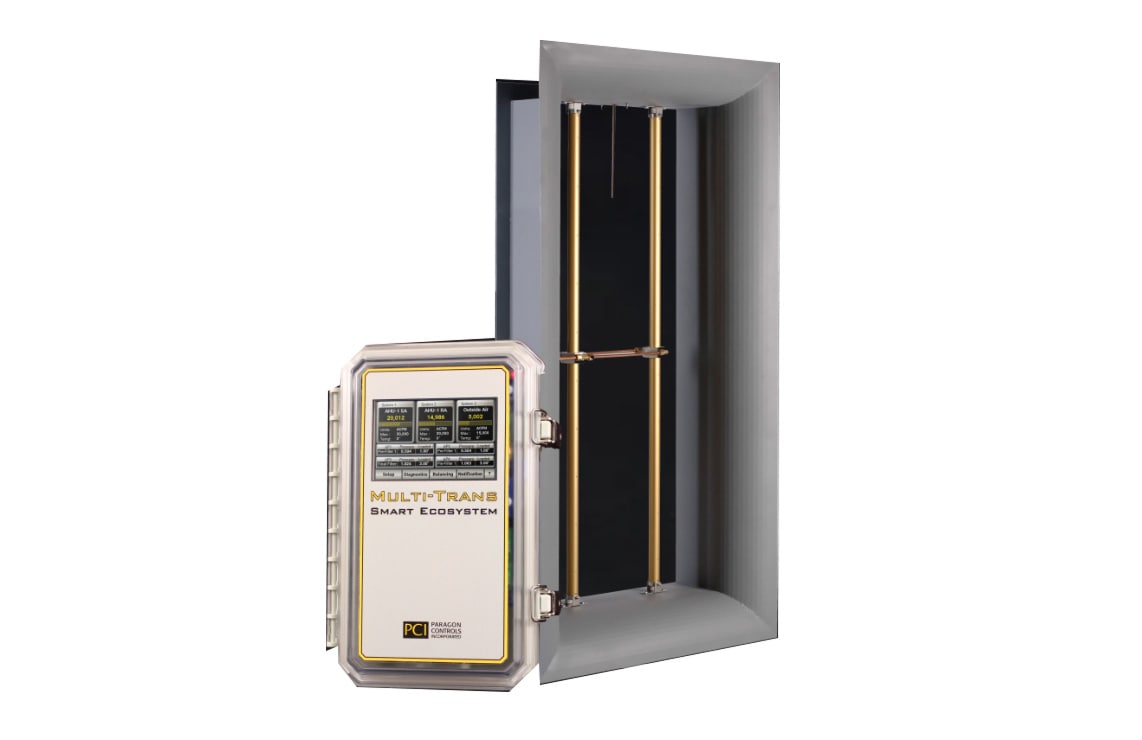

OAFE-1550
The OAFE-1550 is an AMCA certified outdoor airflow measurement system capable of producing an overall ±0.5% accuracy through the velocity range of 200 to 1,200 fpm. The airflow measurement system consists of an integral signal processor and multiple airflow elements, factory mounted and pre-piped in a casing designed for flanged connection to ductwork, control dampers, louvers, etc.
PCI Duct Flo Transducers

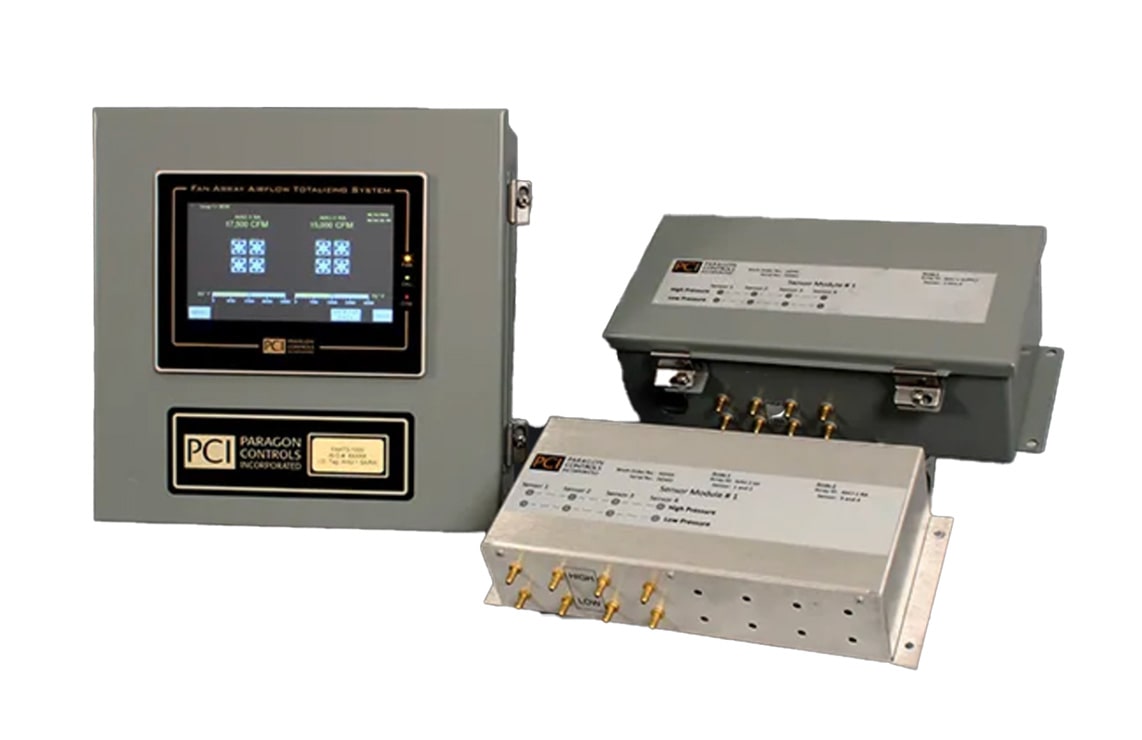

FAATS-1000
The FAATS-1000 is an Array Airflow Totalizing System has been specifically designed to provide a cost effective means for accurate (±0.25%F.S.) airflow measurement of up to forty individual fans within a single fan array or forty combined fans in an air handling unit with both supply and return fan arrays. Each fan’s airflow rate and the total airflow rate of each fan in the array is displayed on a 7-inch full-color HMI touchscreen.
PCI Duct Flo Transducers

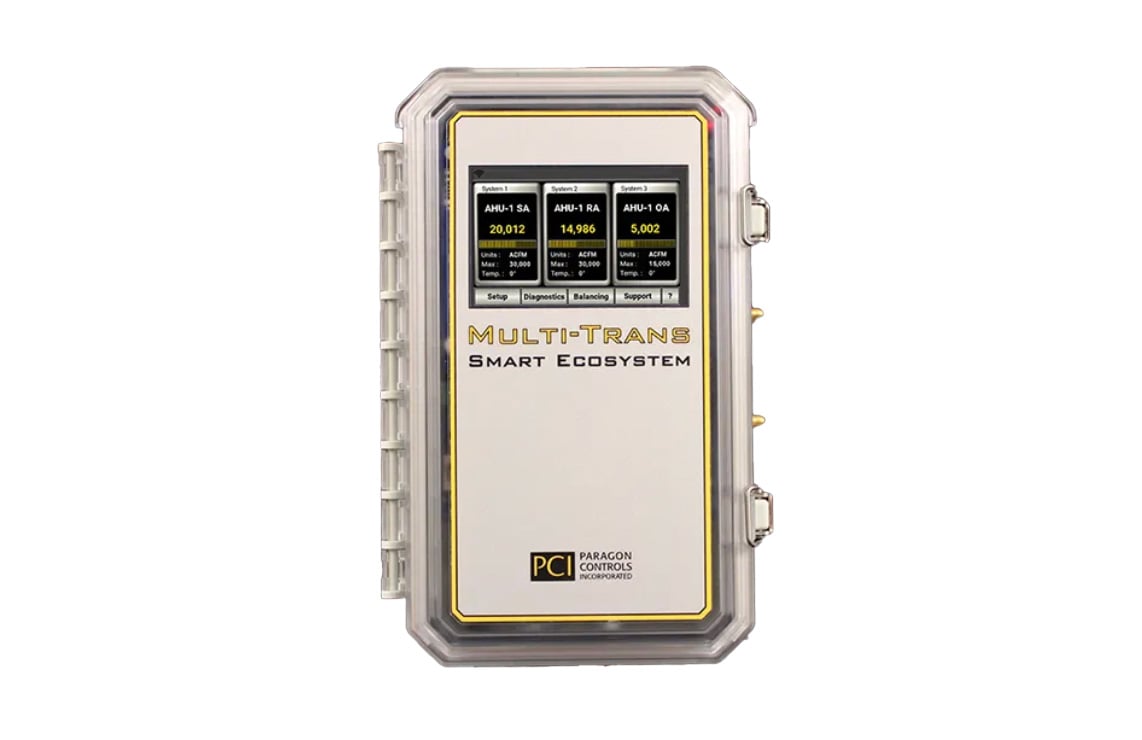

Multi-Trans Smart Ecosystem
The MTSE has been engineered to provide a cost effective solution for accurate (±0.25%F.S.) airflow measurement of up to three systems; perfect for air handling or rooftop units requiring supply fan array, return fan array, and outside air intake monitoring. The MTSE accepts pressure signals from each fan’s existing piezometer ring sensors or from field-installed airflow sensors.
PCI Space Pressure Monitor

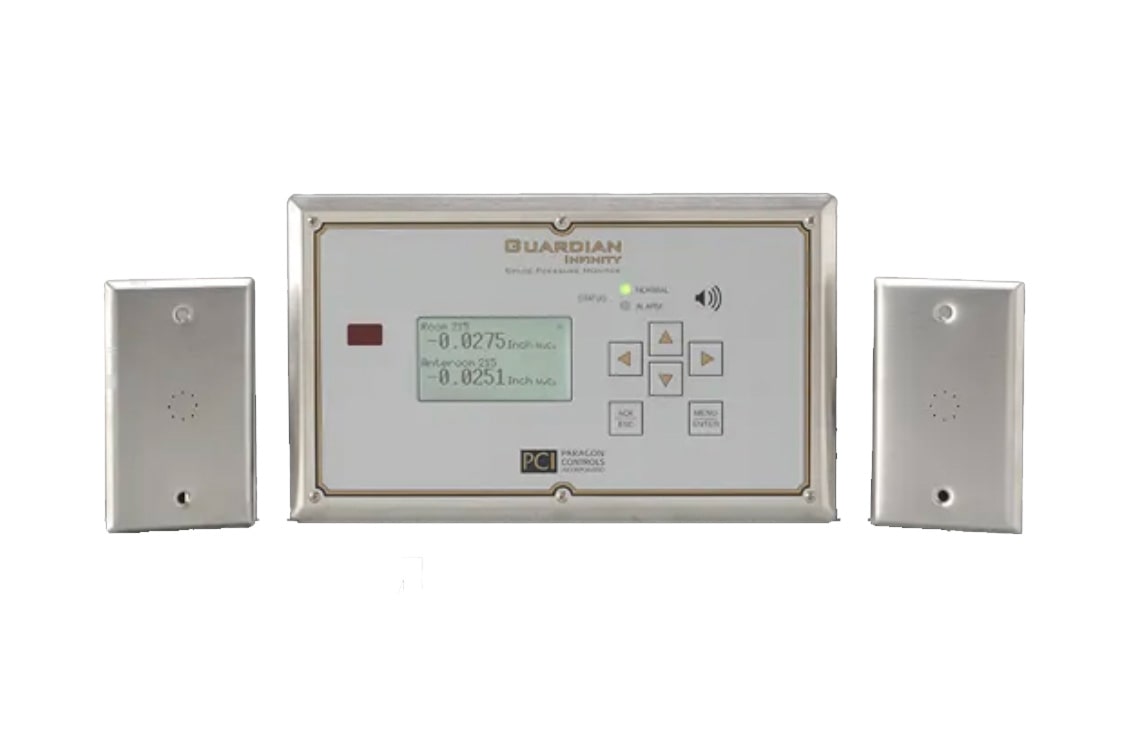

SPM-4000 Guardian Infinity
The SPM-4000 Guardian Infinity is a complete room/space pressure measurement system including space and reference pressure sensors and a central signal processing module. The central module includes a flush mount electrical box, 8 line graphic display for local indication of the space pressure and device configuration, six button touch pad for field configuration, LED indication of operational mode and status, and an audible alarm with alarm acknowledge switch.
